R Type Spiral Wound Gasket

R Type Spiral Wound Gasket Typical Applications
* Pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, etc.
* Petrochemical, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical unclear power station and navigation, etc.

R Type Spiral Wound Gasket Prime Features
* Gasket are made in a wide variety of sizes and shapes.
* Combinations of metal strip and filler are selected to suit the specific fluid media and operating conditions.
* Quick to install and remove
* Make gaskets suitable for high pipeline pressure on flat or raised flange faces.
* Temperatures from cryogenic up to 1000 °C

R Type Spiral Wound Gasket Specifications & Materials
* Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.
* Color cord as ASME B 16.20 on request.
* Provide complete range of materials spiral wound gaskets, combining the performance of the materials. Including Monel 400/ Inconel 600,625,800,825/ Hastelloy B3/ Hastelloy C276/ Titanium,etc. Range of fillers: Graphite, PTFE, Non-asbestos, Mica, etc.

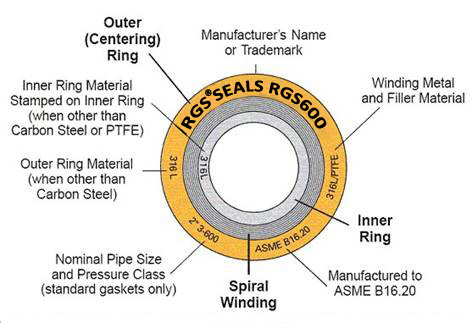

R Type Spiral Wound Gasket Marking & Stamping

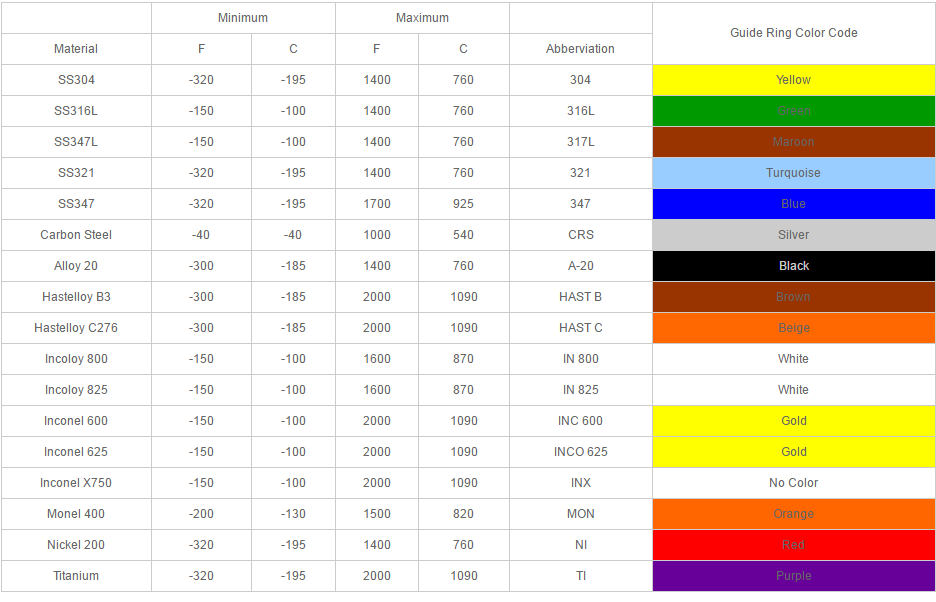

Ring & Strip Materials

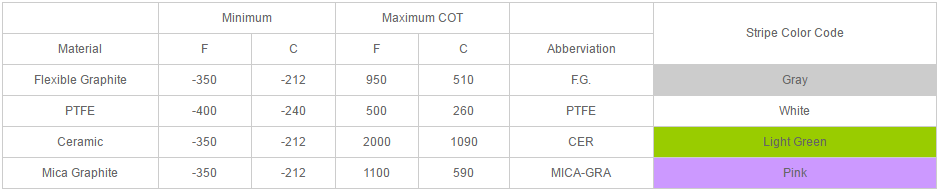

Ring & Strip Materials

Spiral Wound Gaskets Package Types
To ensure that clients receive the highest quality of spiral wound gaskets, KXT Spiral Wound Gaskets are packaged with the utmost care to prevent damage during shipping to the job site, please see below:
* Between 1/2'' ~ 24'' gaskets are packaged by plastic clips each 10 pcs.
* Up to 24'' gaskets packaged by soft cotton tape each.

How to Order
1.Nominal pipe size or specific gasket dimensions
2.Pressure rating
3.Winding and filler materials
4.Centering / outer ring or inner ring material
